1-pin IP69 pluggable wet ROV RF coaxial connector for underwater power and scope applications. Depth-rated, stainless steel. Contact sales@rovcable.com.

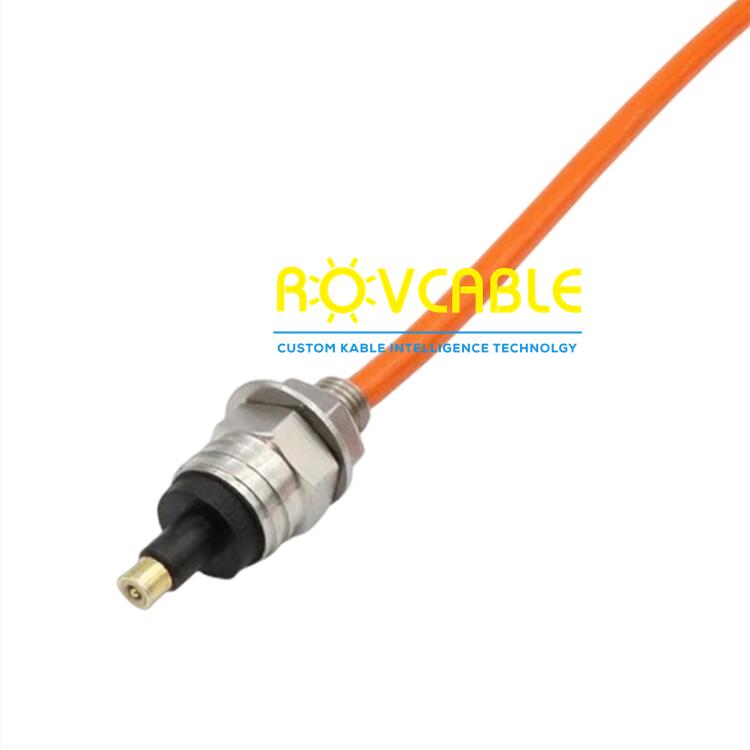

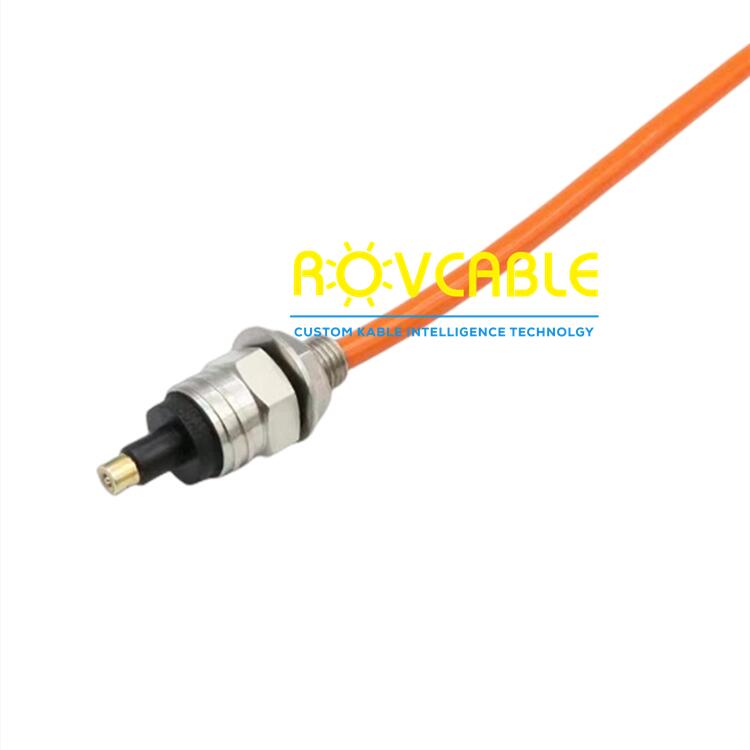

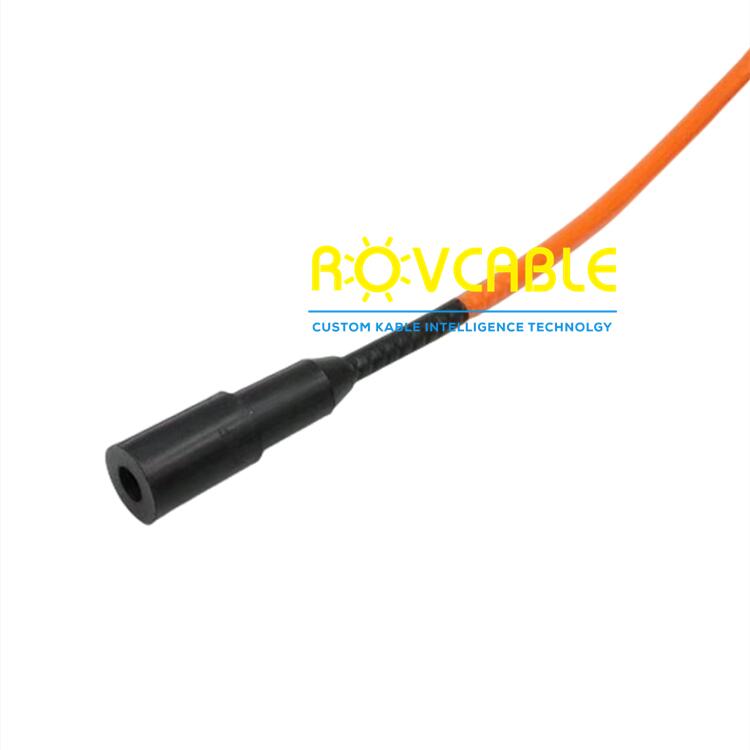

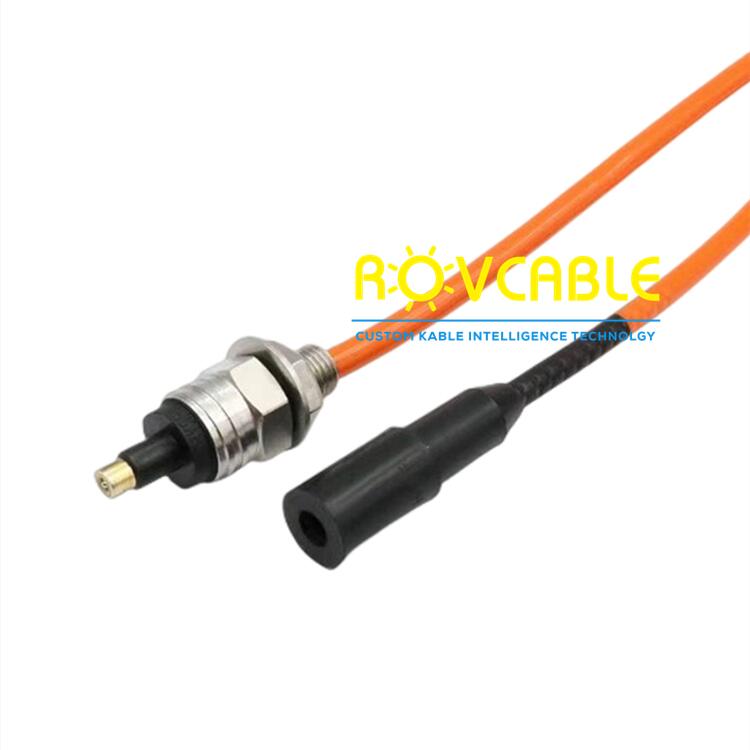

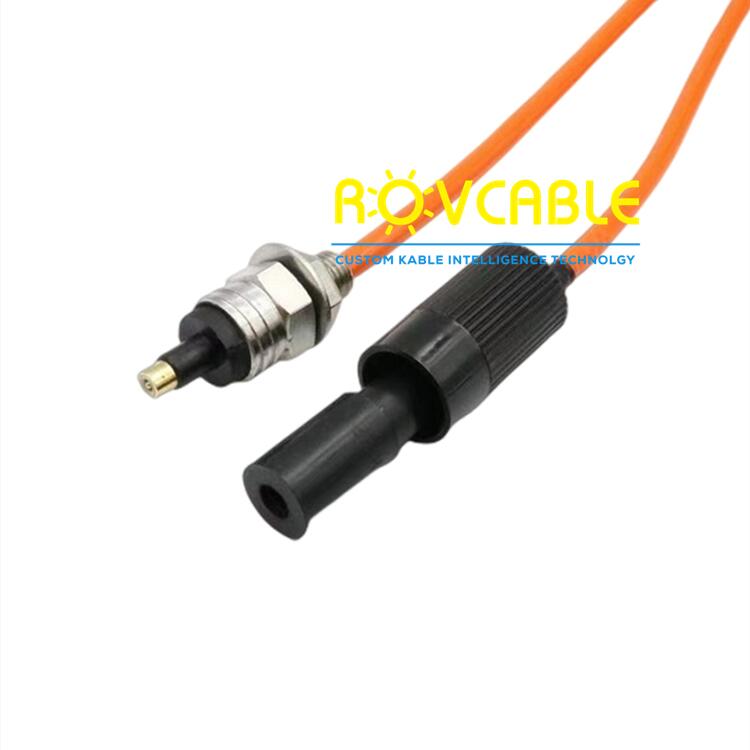

This single-pin IP69 pluggable wet-mate RF coaxial connector from Shanghai Kabel Intelligence Technology Co., Ltd is designed for ROV systems, underwater power scopes, and subsea instrumentation requiring a compact, wash-down and submersion-proof coaxial connection. The IP69 rating (high-pressure, high-temperature wash-down) makes it one of the most robust coaxial connectors available for underwater fieldwork.
| Parameter | Value |
|---|---|
| Pin Count | 1 (Single RF Coaxial) |
| IP Rating | IP69 (high-pressure wash-down + immersion) |
| Mate Type | Wet-Pluggable / Field-Mateable |
| Impedance | 50 Ohm / 75 Ohm |
| Housing Material | 316L Stainless Steel |
| Contact Plating | Gold |
| Operating Depth | 300 m standard; custom available |
| Mating Cycles | ≥200 |
Enquire about wet-mate options, custom depth ratings, or cable assemblies: sales@rovcable.com
IP69 certifies protection against high-pressure, high-temperature water jets (up to 80°C, 80–100 bar at 0.1--0.16 m distance) in addition to full submersion. This exceeds the standard IP68 immersion requirement, making the connector suitable for harsh deck and underwater environments.
The connector is designed as a wet-pluggable type -- it can be connected and disconnected in wet or submerged conditions without flooding, making it ideal for diver-operated ROV deployments.
Compatible with standard RG58, RG59, and miniature coaxial cables. Custom termination to LMR, flexible PTFE, or armoured coaxial cables is available on request.
