Hybrid 6-power + 1-coaxial subsea connector for ROV and AUV combining power and RF signal in one waterproof body. IP68 rated. Contact sales@rovcable.com.

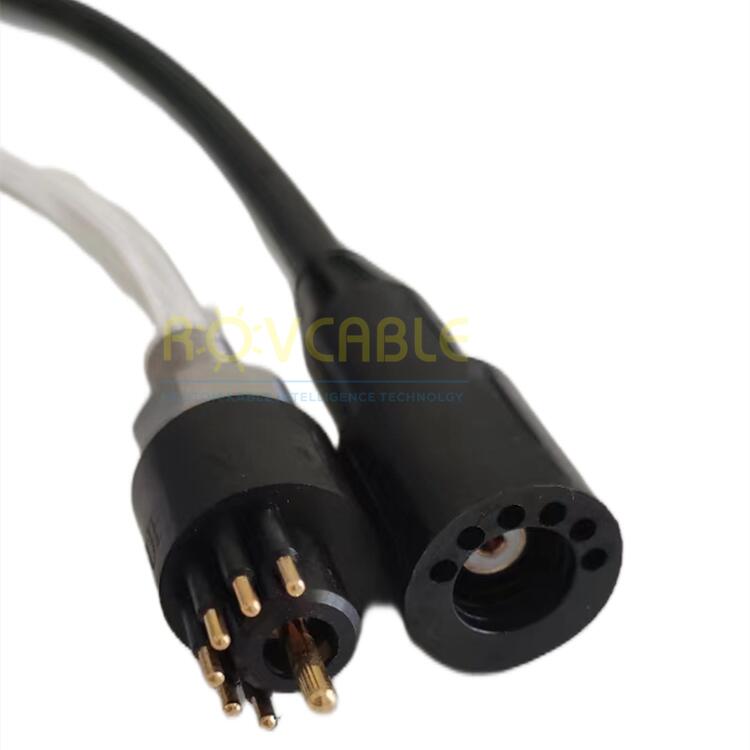

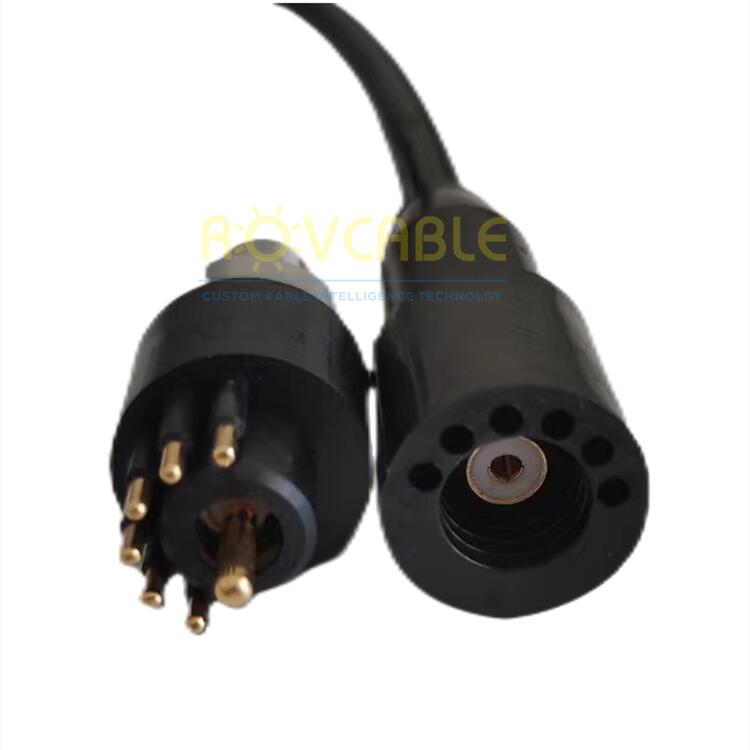

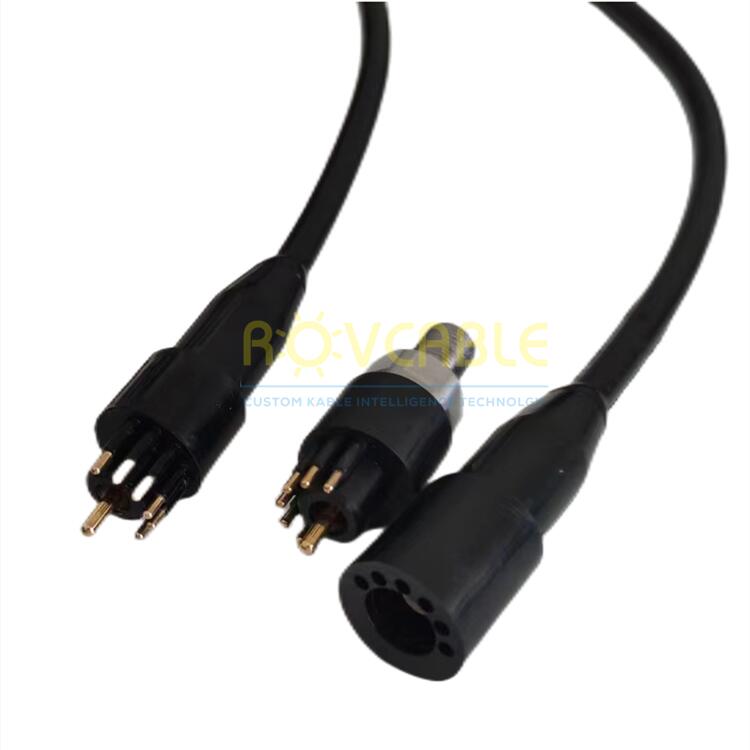

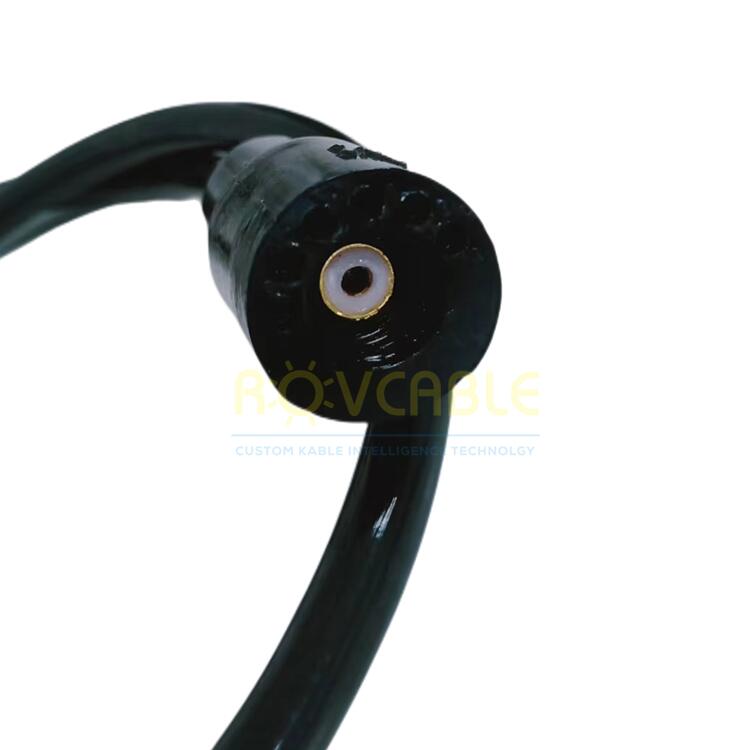

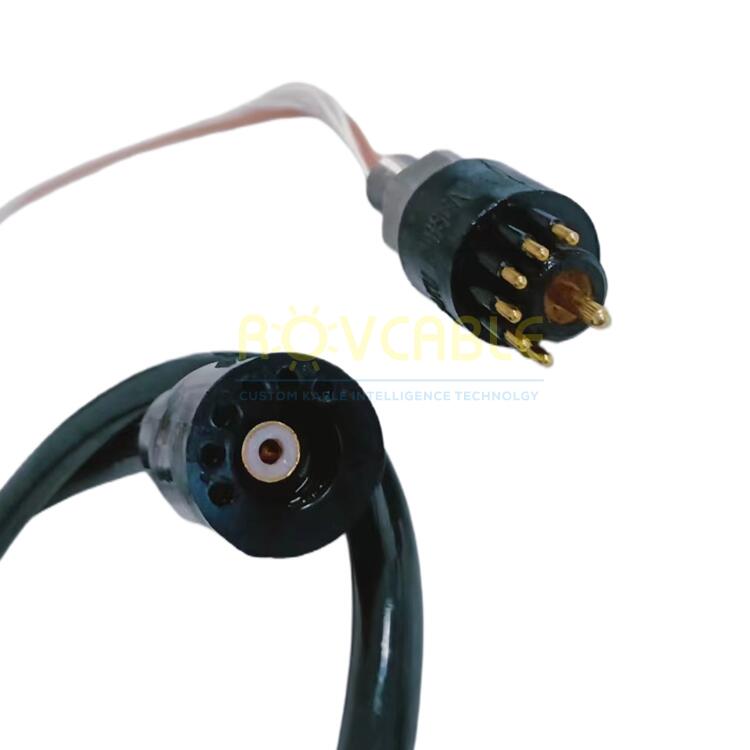

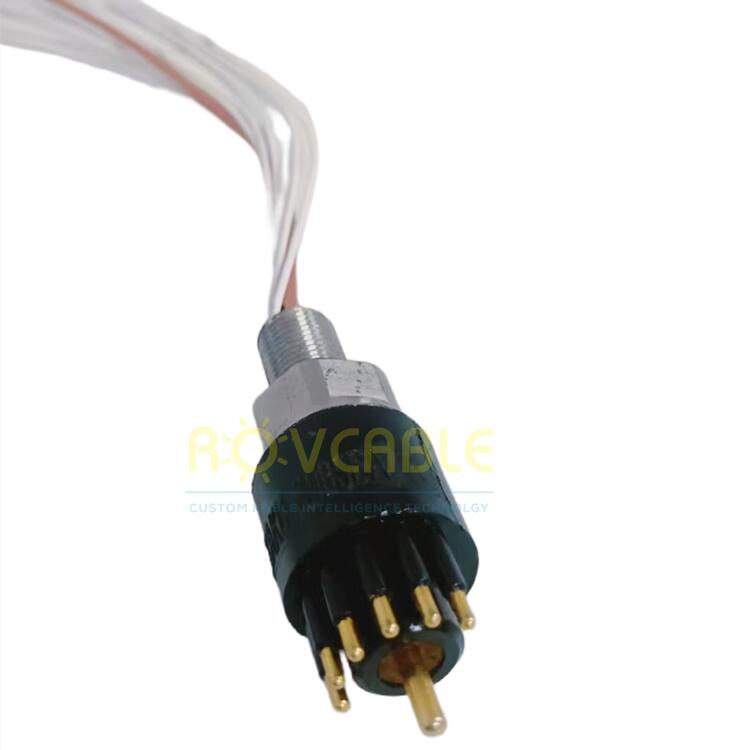

This hybrid subsea connector from Shanghai Kabel Intelligence Technology Co., Ltd combines 6 high-current power contacts and 1 coaxial RF contact in a single compact waterproof assembly. It is purpose-designed for ROV thrusters, AUV power distribution, and any subsea system requiring simultaneous power and RF signal routing through a single penetration point.
| Parameter | Value |
|---|---|
| Contact Configuration | 6 Power + 1 Coaxial |
| IP Rating | IP68 |
| Power Contact Rating | Up to 30 A per contact |
| Coaxial Impedance | 50 Ohm / 75 Ohm |
| Housing Material | 316L Stainless Steel |
| Sealing | Double O-ring + polyurethane boot |
| Operating Depth | 300 m standard; up to 3000 m custom |
| Operating Voltage | Up to 600 V DC/AC |
| Mating Cycles | ≥500 |
For hybrid contact configurations, custom power ratings, or cable assemblies: sales@rovcable.com
Yes. Power contacts are rated up to 30 A each and available in various pin diameters. The coaxial insert can be specified as 50 ohm or 75 ohm to match your RF system.
A hybrid connector reduces the number of hull penetrations on ROV and AUV frames, simplifying the design, reducing leak points, and cutting assembly time. Power and signal are routed through a single IP68-sealed body.

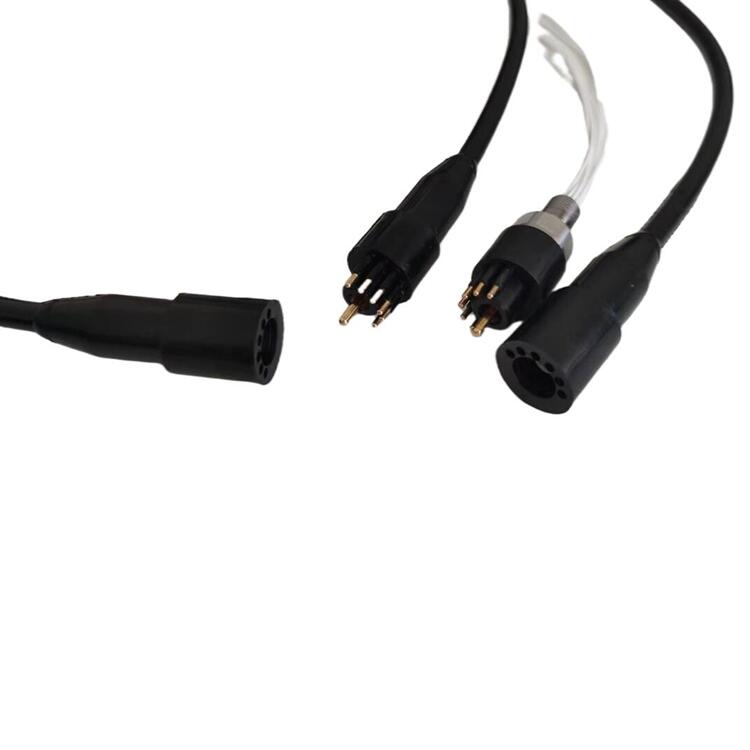

Yes -- we supply matched cable assemblies with appropriate shielded coaxial core and multi-conductor power cable, overmoulded in polyurethane for full subsea protection.
