LEMO-compatible push-pull circular connectors for subsea and industrial applications. IP68 rated, self-latching, available in multiple series and pin counts.

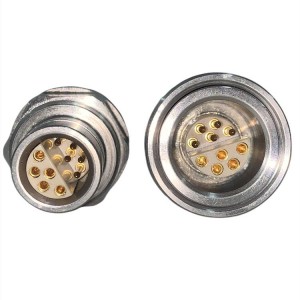

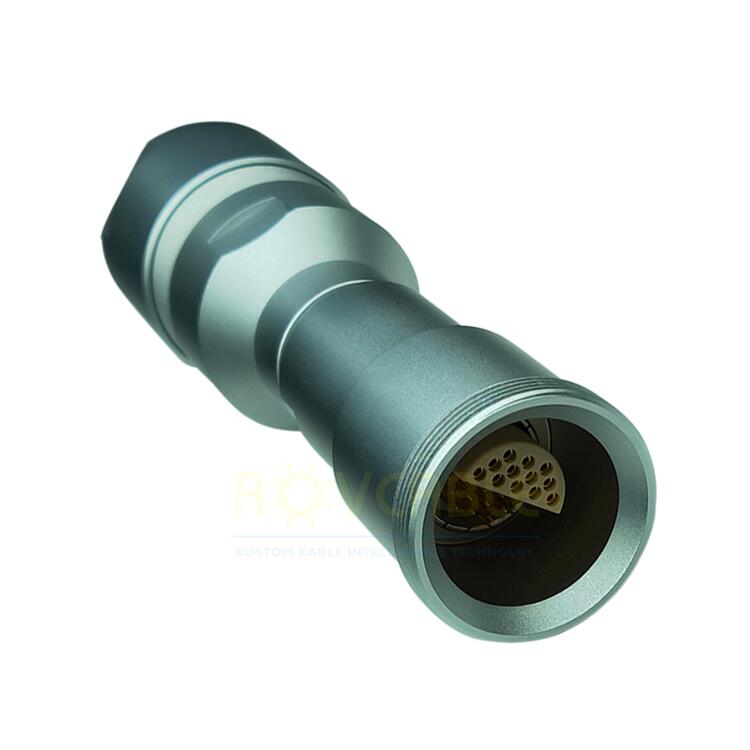

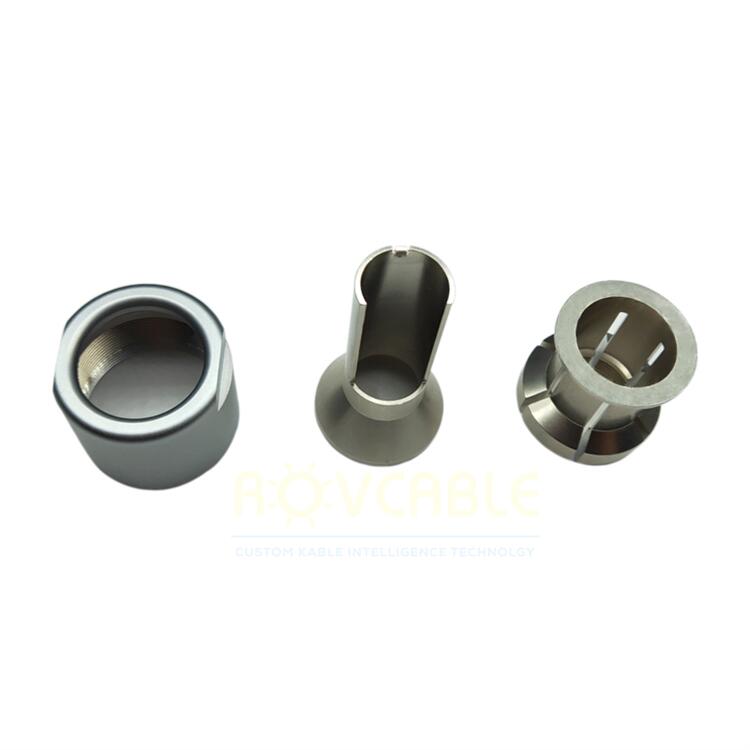

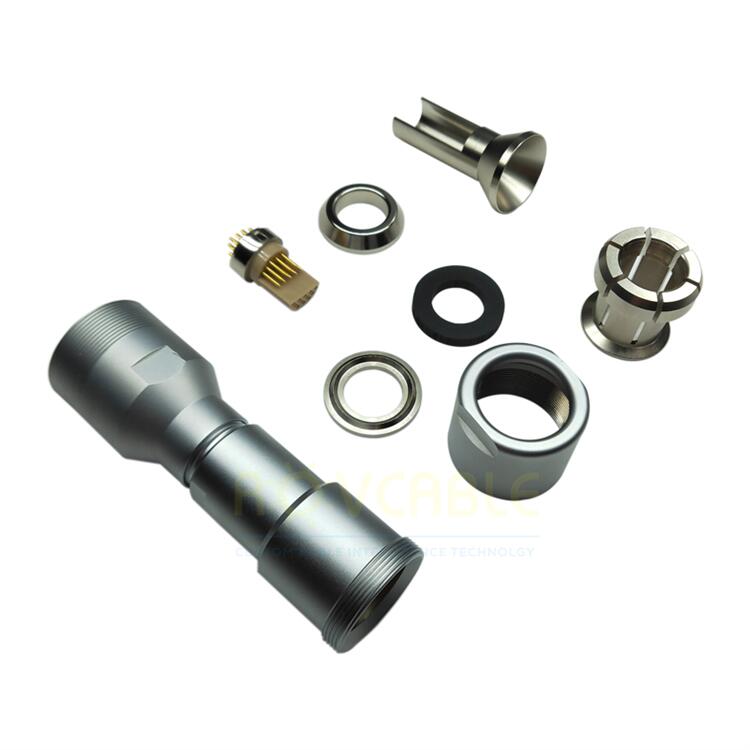

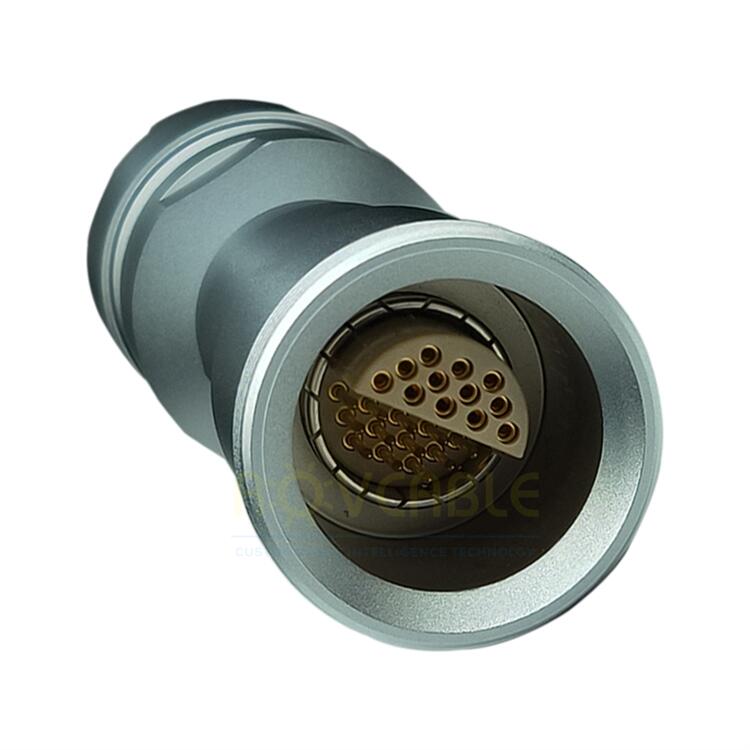

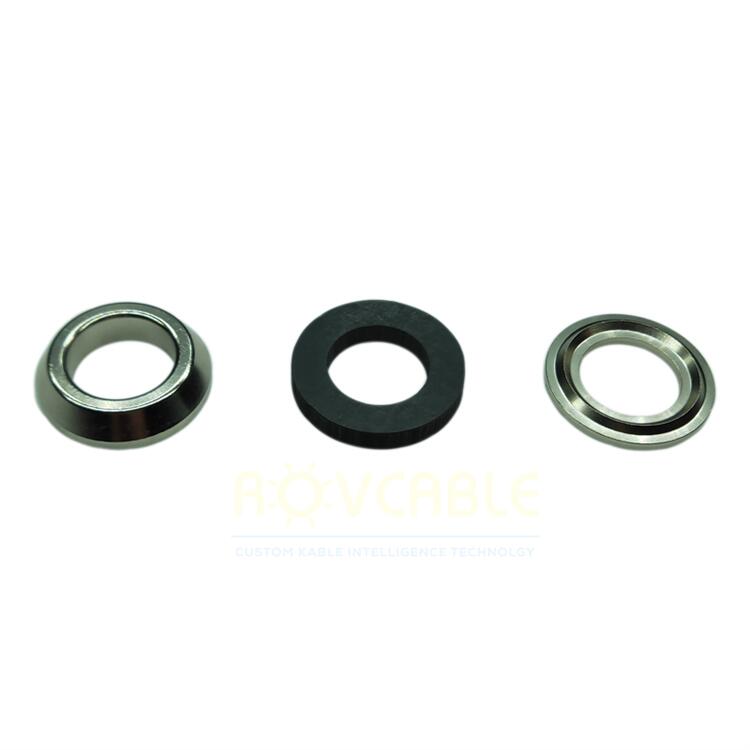

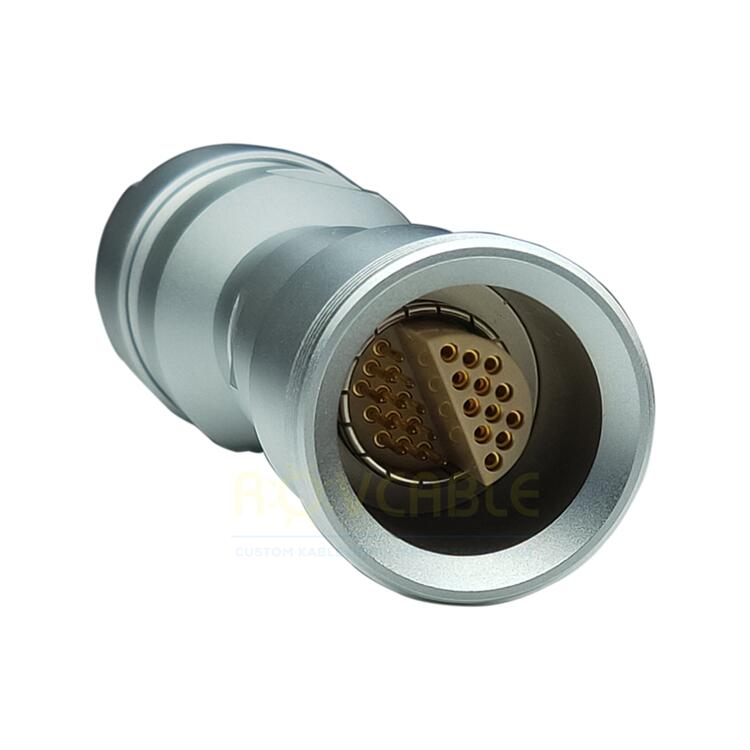

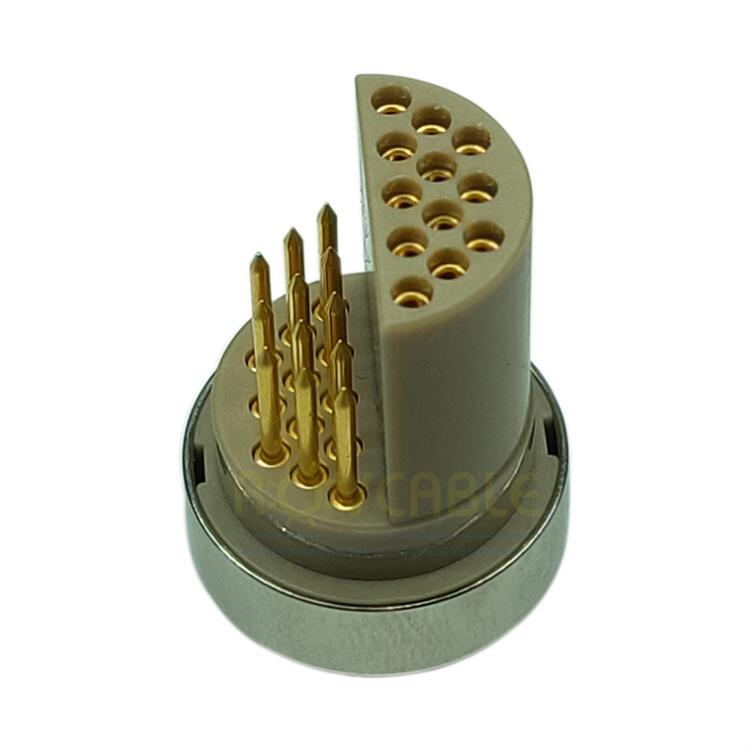

Our LEMO-compatible connectors replicate the renowned LEMO push-pull self-latching mechanism in a robust, IP68-rated circular connector body. With gold-plated contacts and precision machined shells, these connectors provide reliable, quick-disconnect connections for subsea instruments, oceanographic sensors, medical equipment, broadcast, and industrial measurement applications where reliable, tool-free connection is essential.
| Parameter | Specification |
|---|---|
| Coupling | Push-pull self-latching (LEMO compatible) |
| IP Rating | IP68 (mated) |
| Series Compatibility | B / C / D / E / F series |
| Pin Count | 2--32 (series dependent) |
| Contact Rating | 3--10A per contact (series dependent) |
| Voltage Rating | Up to 700V (series dependent) |
| Contact Material | Copper alloy, gold-plated |
| Shell Material | Stainless steel / Nickel-plated brass |
| Temperature Range | -55°C to +125°C |
Specify LEMO series, pin count, and contact type for a quotation: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yes. Our LEMO-compatible connectors are dimensionally compatible with genuine LEMO connectors of the same series and pin count. They mate correctly with genuine LEMO counterparts and pass the push-pull self-latching operation. For critical applications, contact us to confirm compatibility with your specific LEMO part numbers.
LEMO-compatible connectors accept cable ODs up to the backshell capacity. A minimum cable bend radius of 5x OD should be maintained at the connector exit. For dynamic applications with frequent flexing, use the optional cable relief spring backshell.
